30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control

30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control

30L Max Layer Multilayer PCB Assembly

1500*1200mm Max PCB Assembly

+/-10% Impedance Control PCB Assembly

원래 장소:

중국/캄보디아

브랜드 이름:

Suntek

인증:

ISO9001, ISO13485, TS16949 and UL E476377

모델 번호:

SE45

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
기본 자료:
FR4, Rogers, 할로겐 프리
보강재:
RCC,FR4
최대 레이어:
30L
최대 PCB 크기(mm):
1500*1200mm
기본 구리 무게:
1/4온스-2온스
임페던스 컨트롤:
+/-10%
표면 마무리:
ENIG/OSP/HASL/Au 플래팅/잠수 틴
PTH의 내성이:
+/- 0.05mm
지불 및 배송 조건
최소 주문 수량
5PCS
가격
1-100USD/PCS
포장 세부 사항
진공, 항 정적, ESD, 상자
배달 시간
모든 구성 요소를 수집 한 지 1 주일 후
지불 조건
전신환, 전신환, 페이팔
공급 능력
100pcs/시간
관련 제품
저희와 연락
0086-731-84874736
지금 연락하세요
제품 설명
Multilayer PCB Assembly Manufacturer New Energy Circuit Board With Impedance Control
Suntek Group is a leading supplier in EMS field with one-stop solution for PCB/FPC assembly, Cable assembly, Mix technology assembly and Box-buildings.
We have 2 manufacturers, one in China, other one in Cambodia.

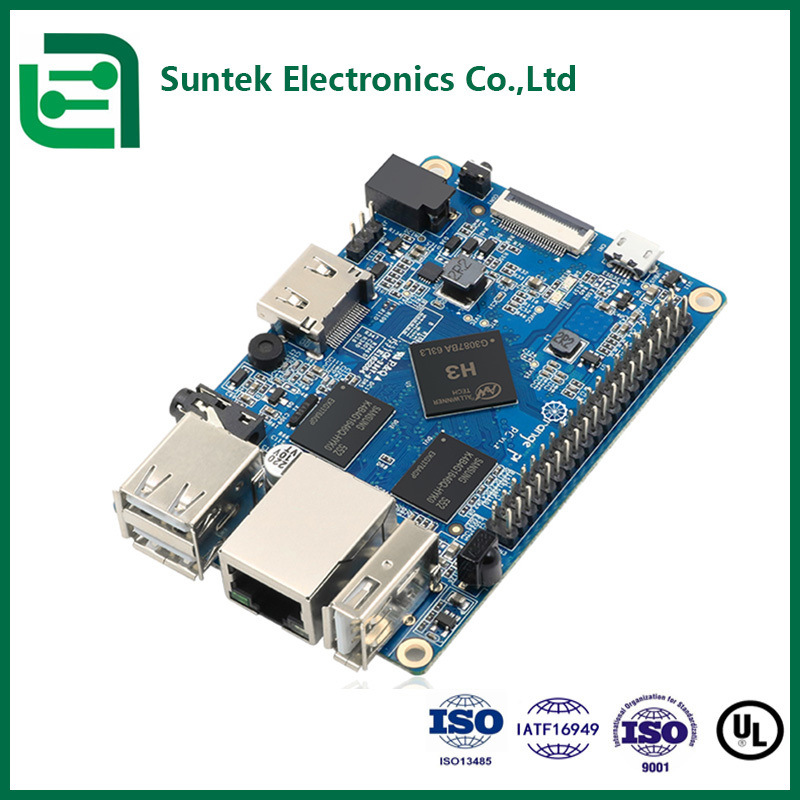

30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control 0 30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control 1
PCB-PCBA Applications:
  • Automobiles, Machinery
  • Electronical machine, Projector
  • Advertising machine, Monitor, Home appliance
  • Water Dispensers, Computer, Motherboard
  • Military equipment, Air conditioner
  • Communications-equipment, Power device, etc.

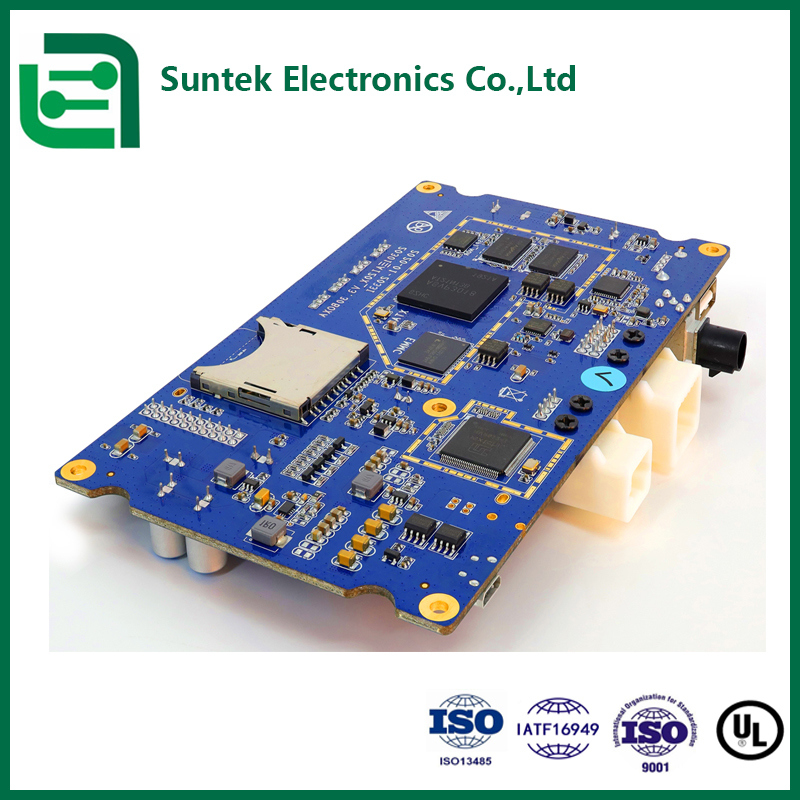

30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control 2
Frequently Asked Questions
Q1: What files do you use in PCB fabrication?
A1: Gerber, BOM, Drawings.
Q2: How do you make sure the quality?
A2: Our Product is all 100% E-tested. PCB Assembly are with 100% AOI, ICT, FT and Visual checking, 100% X-ray for BGA.
Q3: Can we visit your company?
A3: Of course, Welcome to visit our company, Suntek located in Xingsha Industrial Park, Changsha, Hunan province, China.
Q4: What is the lead time?
A4: It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity. It takes 15-20 working days for PCB assembly.
Q5: Will you keep our information and files secret?
A5: Sure, It is our basic principle to keep business secrets to protect our customers' designs. NDA can be signed at any time.
Q6: How to work with you?
A6:
- Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days
- Waiting for your company to confirm the price, order and payment terms
- We will proceed the order
